Productdetails:
|
Aspect Ratio: | 16:10 | Resolution: | 1280*800(1920*1200 optional) |
---|---|---|---|
Interface Type: | VGA, Serial, usb | Response Time: | 5ms |
Contrast Ratio: | 800:1 | Brightness: | 300cd/m2 |
Type: | Capacitive Touch | Colors: | 16.7M |
Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Touch Technology: | 10 points Multi-Touch Capacitive Touch Screen |
Warranty: | 1 year | Interface: | AV/BNC/VGA/HDMI/USB |
Markeren: | pcap 15 inch industriële touchscreen monitor,met een diameter van niet meer dan 20 mm,open frame 15 inch industriële touchscreen monitor |
De specificaties van 10.1 inch 16:10 Industriële Touch Monitor | ||
Project | Model | GC1016 |
Scherm | Schermgrootte | 10.1 inch |
Beeldverhouding/Resolutie | 16:10 1280*800 | |
Kijkhoek | 80/80/80/80 (Typ.)(CR≥10) | |
Contrastverhouding | 800:1 | |
Reactietijd | 10/30(Typ.) (Tr/Td) ms | |
Helderheid | 300 cd/m² (Typ.) | |
Kleuren | 16.7M | |
Touchscreen | Touchtechnologie | 10-punts Multi-Touch Capacitief Touchscreen |
Touchscreen Transparantie | 87% | |
Touch Oppervlakte Hardheid | >7H | |
Resolutie | 4096*4096 | |
Touch Reactietijd | <10ms | |

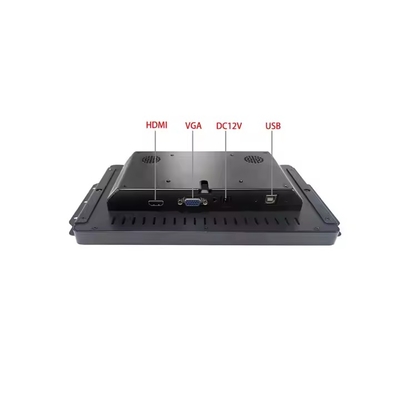

I/O-poort | Interface | AV BNC VGA HDMI USB |
Overig | Voeding | DC12V 4A AC110~220V |
Installatie | VESA 100×100, frame*Zijmontage | |
Productgrootte | 270×167×35mm | |
Actief Weergavegebied | 219(B)×137(H) mm | |
Temperatuur | Werking: 0℃~40℃, Opslag: -20℃~6℃ | |
Vochtigheid | Werking: 20%~80%, Opslag: 10%~90% | |
Hoogte | <3000 m | |
Accessoires | VGA-kabel, USB-kabel, Stroomadapter | |
Deze serie industriële capacitieve touchscreen monitor, we kunnen 8"~43" aanbieden. | ||
